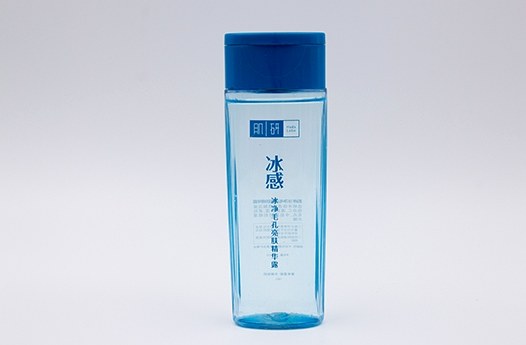

Daily-use packaging Daily-use bottle samples
Automatic Bottle Blowing Machine

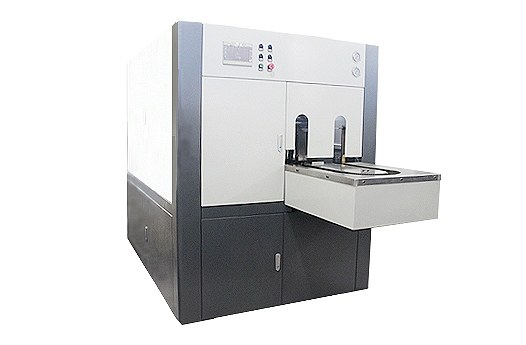

KRC900-II PP Stretch Blow Molding Machine
Legacy source KRC900-II PP two-step automatic stretch blow molding equipment for PP, PETG, Tritan, PENS, PPSU and PET bottle projects.
Bottle format fit
Where this machine route fits.
- Carbonated beverage bottles
- Mineral water bottles
- Oil bottles
- Medicine and cosmetic bottles
PPPETGTritanPENSPPSUPET
6Material options listed
14Public spec fields
4Application routes
KRCMachine family
Engineering route
Engineering notes.
- PLC programmable control
- Infrared preform heating
- Adjustable heating lamp reflector
- PARKER high-pressure blowing valve
Technical data status
Public parameters from source data.
Source URL: http://keruicheng.com/en/productsshow_3.html
| Cavity number | 2 |
|---|---|
| Theory production | 700-2500 pcs/hr |
| Maximum blown capacity | 1000 ml |
| Sealing surface maximum diameter | 90 mm |
| Body maximum diameter | 92 mm |
| Body maximum height | 240 mm |
| Allow mould thickness | 180 mm |
| Maximum heating power | 48 kw |
| The power | 49 kw |
| Actual power consumption | 18 kw |
| Working pressure | 8 kg |
| Bottle blowing pressure | 40 kg |
| Host size | 2960 x 1560 x 1950 mm |
| Machine weight | 1500 kg |
Buyer confidence Verified specs
This page separates source-backed public data from information that must be confirmed by engineering.
Quote starts from bottle drawing or sample, not a generic catalog price.
Public specs are shown only where the source data supports them.
Missing parameters are marked for engineering confirmation, not being invented.
RFQ path asks for material, output, mold and destination in one brief.
Bottle samples
Use sample category to confirm mold and machine fit.
Send a bottle sample photo or drawing with this machine model so engineering can check neck finish, volume, material route and mold constraints together.
Cosmetic packaging Cosmetic bottle shape references
Sample display Bottle mold output samples
Machine + mold RFQ
Confirm the mold and line route before buying hardware.
For PET and PP bottles, the machine model, mold thickness, cavity plan, preform route and downstream handling should be reviewed together.
